| Place of Origin: | CHINA |
| Brand Name: | XM |
| Certification: | ISO9001 |
| Model Number: | XM |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | 3000USD-4500USD |
| Packaging Details: | WOODEN BOX OR ACCORDING TO CUSTOMERS REQUEST |
| Delivery Time: | WITHIN 15DAYS WHEN WE GOT THE PAYMENT ADVANCE |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10SET/MONTH |
| Stock Wire Diameter: 1.5-2.8mm: | Barbed Wire Diameter: 1.6-2.2mm | Twist No.: 4: | Puncature Distance: 3"-6" |
|---|---|---|---|
| Speed Of Main Rotating Axis: 402r/Min: | Speed Of Pulling Rope: 470r/Min | Motor: 2.2kw: | Unit Wire Diameter: 2.2-3.0mm |

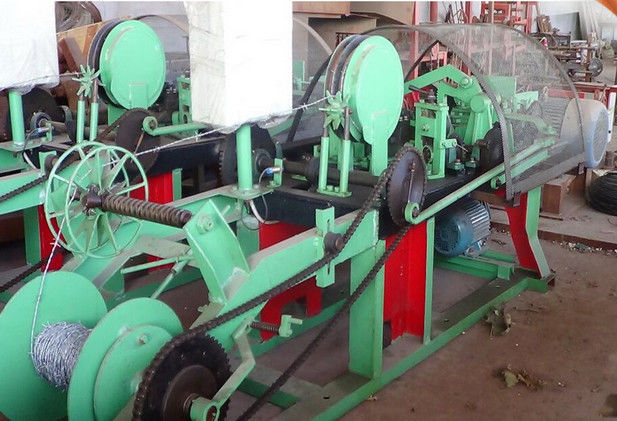

Best Price Full Automatic Barbed Wire Making Machine
reversed Automatic Barbed Wire Making Machine Machine hot is used to make double barbed wire which is widely used on
the airport, miltary, railway, highway, agriculture, animal husbandry and so on.
| Gauge of Strand and Barb in B.W.G. | Approximate Length per Kilo in Meter | |||
| Barbs spacing 3" | Barbs spacing 4" | Barbs spacing 5" | Barbs spacing 6" | |
| 12x12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
| 12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
| 13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| 13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
| 15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
| Model | CS-A | CS-B | CS-C |
| Motor | 2.2KW | 2.2KW | 2.2KW |
| Main drive shaft speed | 402r/min | 355r/min | 355r/min |
| wire diameter (mm) | 2.2-3.0 | 2.2-3.0 | 1.6-2.2 |
| Barbed wire diameter(mm) | 1.8-2.2 | 1.8-2.2 | 1.6-2.2 |
| Barbed space (mm) | 76, 102, 127 | 102, 127 | 102, 127 |
| Twisted number | 3-5 | 7 | |
| theoretical production | 77 kg/h | 40 kg/h | 40 kg/h |
| weight | 1000kg | 950kg | 950kg |
| Main part size(mm) | 1950*950*1300 | 3100*1000*1150 |
3100*1000*1150
|

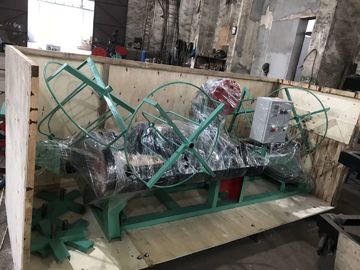

Packing of barbed wire making machine
V.Commercial terms
1. FOB price: Barbed Wire Machine CS-A: 4380 USD FOB Xingang Port, China
2. Payment: 30% T/T in advance, the balance 70% by T/T after check the machine at seller's factory.
3. Minimum order quantity: 1 set
4. Certification: ISO 9001 Certificate
5. Delivery time: 30 days from received your payment in advance.
6. Country of origin: China
7. Our guarantee time: 12 months after the equipment is accepted by the buyer, however, the guarantee period is no longer than 18 months after equipment's departure from Xingang port, China.
8. Installation: we could arrange our engineer install the machine in your factory.
7. Our guarantee time: 12 months after the equipment is accepted by the buyer, however, the guarantee period is no longer than 18 months after equipment's departure from Xingang port, China.
8. Installation: we could arrange our engineer install the machine in our factory.
Our service:
1. Guarantee period: 12 months (but no longer than 18 months since departure from Xingang Port)
2. Our engineers are available to install and maintain machine overseas.
3. Customized machine.
4. OEM support.
5. Fast delivery.
6. Moderate price.
7. Door to Door service or 24-hour email service.
