| Place of Origin: | CHINA |
| Brand Name: | cr |
| Certification: | ISO9001 |
| Model Number: | CR-1 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 12800usd-16800usd |
| Packaging Details: | bulk |
| Delivery Time: | within 30days from we got the payment advance |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 10sets/Month |
| Dimension(L*W*H): 3.4x3.0x2.4(m): | Edge Wire Diameter : 2.0-3.5mm | Puunntt :100-140 Square Mters/H: | Mesh Size : 30*30mm-100*100mm |
|---|---|---|---|
| Control System:PLC: | Machine Type:Hinge Joint Cattle Fence Machine | Width:1-4m: | Wire Diameter (mm) : 1.8 - 2.5 Mm |
| Weight (Kg): 2000: | Single Package Size: 20X15X10cm | Style: Vertical: | Voltage:380V.50HZ |
| Mesh Size: | 30*30mm-100*100mm | Wire Diameter: | 1.8-2.5mm |
| Edge Wire Diameter: | 2.0-3.5mm | Production Efficiency: | 45 Row/min |
| Fence Height: | 1500-2400mm | Voltage: | 380V 50Hz |
| Highlight: | 1-4m Width Grassland Fence Machine,PLC Control Hinge Joint Fence Machine,50mm Mesh Cattle Fence Making Machine |
||

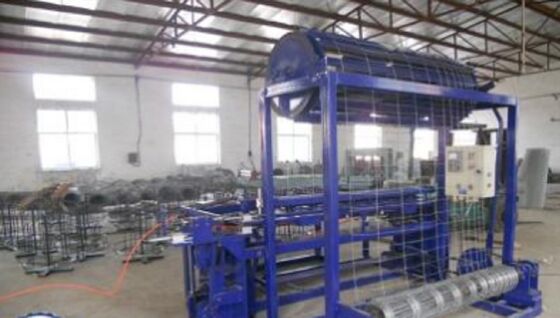

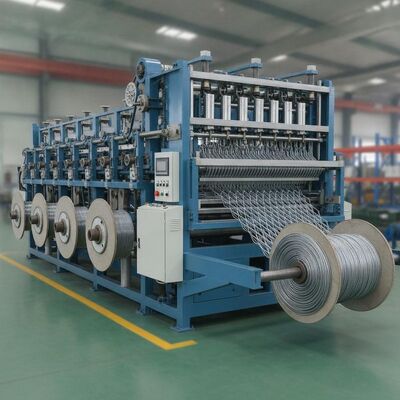

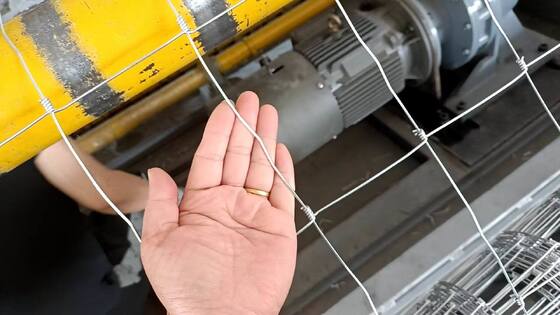

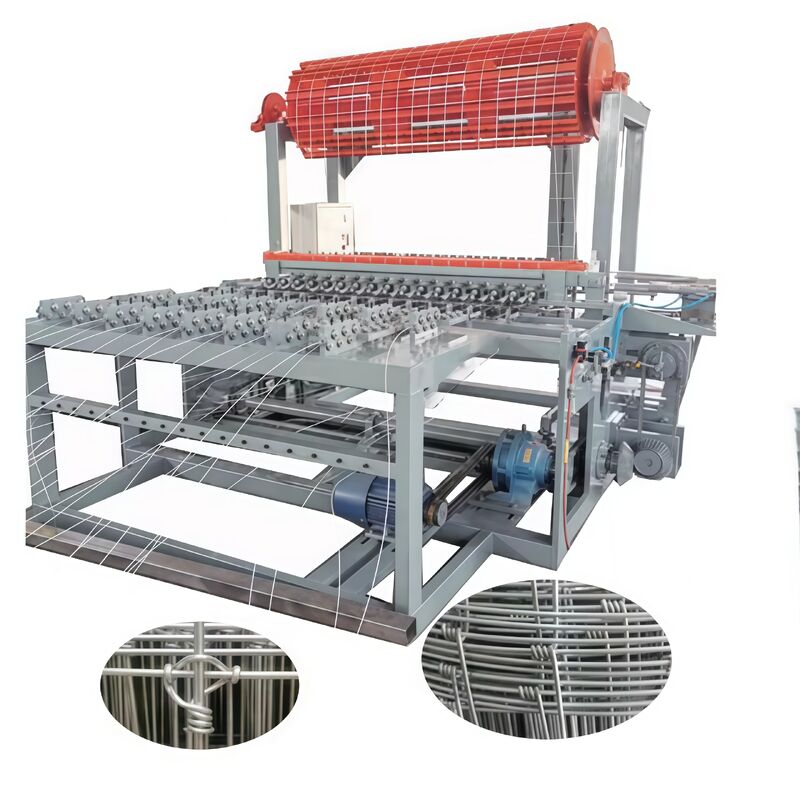

The New Grass Fence Machine incorporates advanced European technology to upgrade the conventional grassland netting machine. Its most outstanding advantage is the ability to produce 50 mm mesh, meeting the diverse requirements of customers across different regions.
| Model | CR-NG17-1500 | CR-NG19-1800 | CR-NG22-2100 | CR-NG26-2400 |
|---|---|---|---|---|
| Inner wire diameter | 1.8–2.5 mm | 1.8–2.5 mm | 1.8–2.5 mm | 1.8–2.5 mm |
| Edge wire diameter | 2.0–3.5 mm | 2.0–3.5 mm | 2.0–3.5 mm | 2.0–3.5 mm |
| Fence height | 1500 mm | 1800 mm | 2100 mm | 2400 mm |
| Production efficiency | 45 rows/min | 45 rows/min | 45 rows/min | 45 rows/min |
| Distance between weft wires | 50–500 mm (adjustable) | 50–500 mm (adjustable) | 50–500 mm (adjustable) | 50–500 mm (adjustable) |
| Distance between warp wires | 50*9 + 100*2 + 150*3 + 200*2 = 1500 mm | 50*9 + 100*3 + 150*3 + 200*3 = 1800 mm | 50*11 + 100*3 + 150*3 + 200*4 = 2100 mm | 50*13 + 100*5 + 150*3 + 200*4 = 2400 mm |
| Line wire number | 17 | 19 | 22 | 26 |
| Weight | 3500 kg | 4300 kg | 5200 kg | 6500 kg |
| Dimensions | 3.0 * 3.0 * 2.4 m | 3.2 * 3.0 * 2.4 m | 3.4 * 3.0 * 2.4 m | 3.9 * 3.0 * 2.4 m |
Note: Machines can be customized according to customer requirements.
To receive an accurate quotation, please provide:

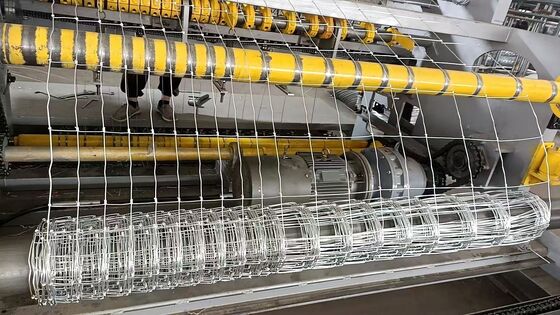

Automatically adjusts tension according to the roll mesh diameter, making it more convenient to remove the finished roll.
All parts are made of special alloy materials with high hardness, extending the service life of components.
Cross wires enter from the side of the machine, clearly separating horizontal from vertical wires for smoother operation.
Specially designed shearing structure completes the cutting process quickly and efficiently, increasing product output.
Bilingual (Chinese and English) control system; cross wire spacing is adjustable via the touch screen.
Each cross wire passes through a separate pipe, preventing wire tangling and reducing the failure rate.
Each cross wire is straightened twice horizontally and vertically to ensure the flatness of the wire mesh.
High-performance motors with different power ratings at different positions minimize power consumption during production.
All main machines are packaged in plastic and then fixed in containers. All accessories are packed in wooden cases.
Training is provided on how to install and operate the machine. Engineers are available to service machinery overseas.
Designed and produced in our factory:
