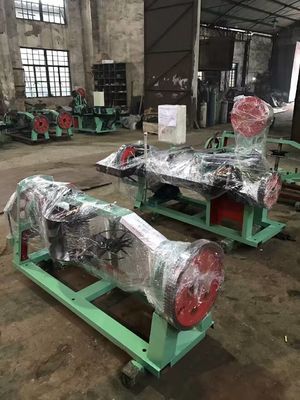

Direct Factory Straight and Reverse Twisted Barbed Wire Machine
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
XM |
| Certification: |
ISO9001 |
| Model Number: |
XM |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1SET |
| Price: |
3000USD-4500USD |
| Packaging Details: |
WOODEN BOX OR ACCORDING TO CUSTOMERS REQUEST |
| Delivery Time: |
WITHIN 15DAYS WHEN WE GOT THE PAYMENT ADVANCE |
| Payment Terms: |
L/C, T/T, Western Union |
| Supply Ability: |
10SET/MONTH |
Contact Now
Detailed Product Description
| Stock Wire Diameter: 1.5-2.8mm: |
Barbed Wire Diameter: 1.6-2.2mm |
Twist No.: 4: |
Puncature Distance: 3"-6" |
| Speed Of Main Rotating Axis: 402r/Min: |
Speed Of Pulling Rope: 470r/Min |
Motor: 2.2kw: |
Unit Wire Diameter: 2.2-3.0mm |
Product Description
Best Price Full Automatic Barbed Wire Making Machine
reversed Automatic Barbed Wire Making Machine Machine hot is used to make double barbed wire which is widely used on the airport, miltary, railway, highway, agriculture, animal husbandry and so on.
Specifications of reversed Automatic Barbed Wire Making Machine Machine hot

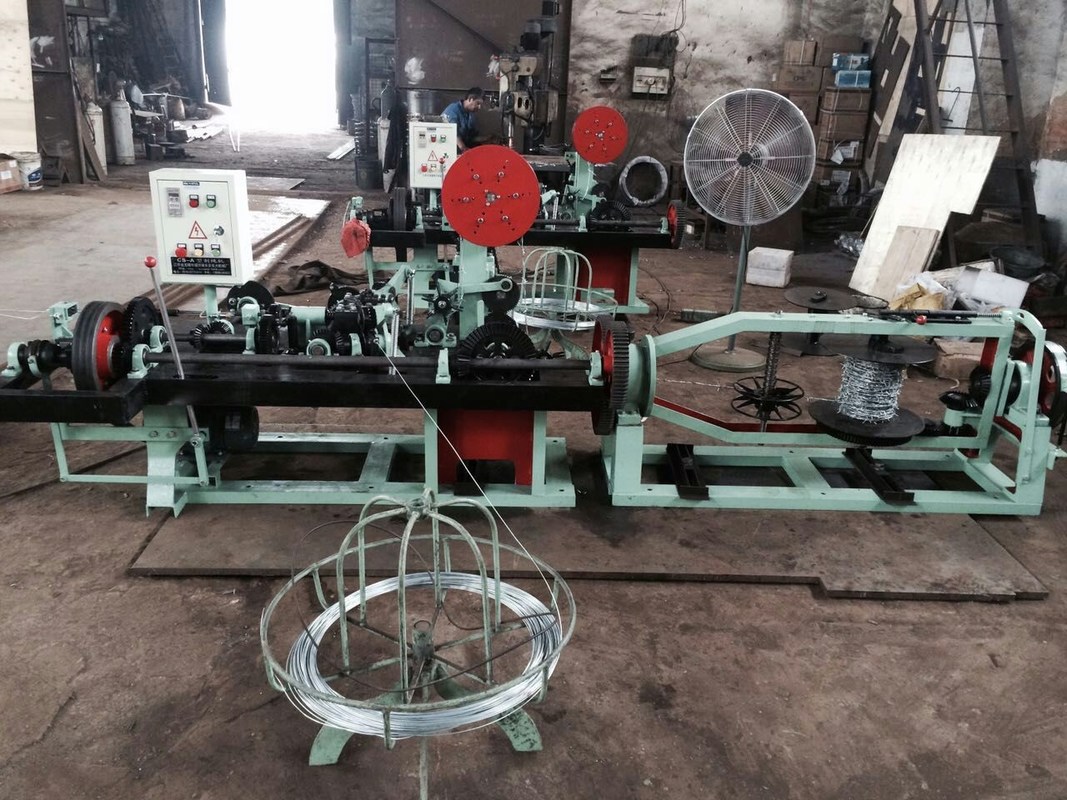

1 double braid common barbed wire machine
it is utilized to manufacture barbed wire made of galvanization iron wire and PVC iron wire. |
main parameter |
| NO |
Items |
unit |
parameter |
| 1 |
motor |
KW |
3 |
| 2 |
Main transmission shaft speed |
r/min |
432 |
| 3 |
Theory capacity |
Kg/h |
70 |
| 4 |
weight |
Kg |
1500 |
| 5 |
Overall dimension |
mm |
1900× 1300× 980 |
| 6 |
Wire drawing size |
mm |
1800× 750× 750 |
| 7 |
Barb spacing |
mm |
76(3)102(4) |
| 8 |
Number of twists |
piece |
4 |
| 9 |
Diameter of section wire |
mm |
2.2-2.8 |
| 10 |
Diameter of barb wire |
mm |
1.8-2.2 |
|

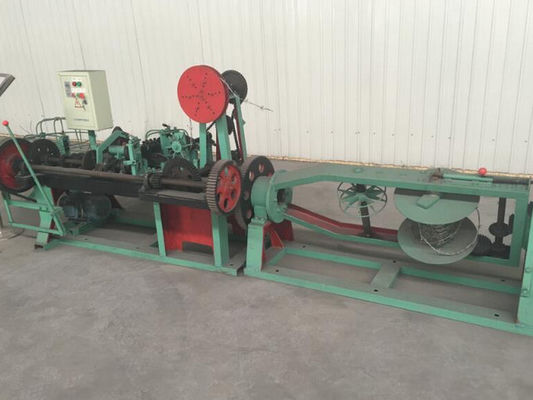

2. double braid and opposition twist barbed wire machine
the machine adopts opposition twist to weaving lapups. The barbed wire made by the machine is perfect without springback and circumnutation. It is easy to install and operate. |
main parameter |
| NO |
Items |
unit |
parameter |
| 1 |
motor |
KW |
2.2 |
| 2 |
Main transmission shaft speed |
r/min |
432 |
| 3 |
Theory capacity |
Kg/h |
40 |
| 4 |
weight |
Kg |
1200 |
| 5 |
Overall dimension |
mm |
1900× 1300× 980 |
| 6 |
Wire drawing size |
mm |
1300× 800× 700 |
| 7 |
Barb spacing |
mm |
76(3> )102> (4) |
| 8 |
Diameter of section wire |
mm |
2.2-2.8 |
| 9 |
Diameter of barb wire |
mm |
1.8-2.2 |
|

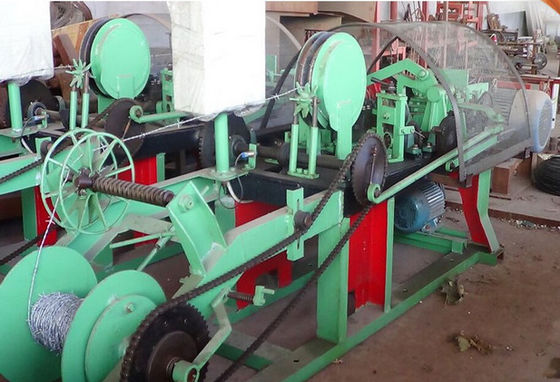

3. single braid barbed wire machine
it is utilized to manufacture single braid barbed wire. its character is saving material, operate easily and low noise. |
| NO |
items |
unit |
parameter |
| 1 |
motor |
KW |
2.2 |
| 2 |
Main transmission shaft speed |
r/min |
357 |
| 3 |
Theory capacity |
Kg/h |
50 |
| 4 |
weight |
Kg |
1200 |
| 5 |
Overall dimension |
mm |
1900× 1300× 980 |
| 6 |
Wire drawing size |
mm |
1300× 800× 700 |
| 7 |
Barb spacing |
mm |
According to customers' requirements |
| 8 |
Number of twists Barb spacing |
piece |
46 |
| 9 |
Diameter of section wire |
mm |
1.6-2.6 |
| 10 |
Diameter of barb wire |
mm |
1.6-2.2 |
|
|

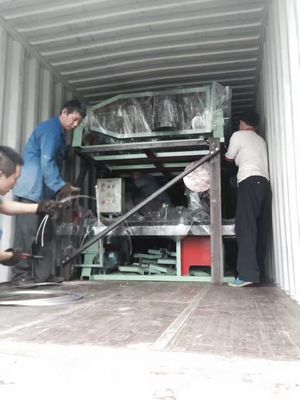

Packing of barbed wire making machine
